Place of Origin: | China |
Hàng hiệu: | BK |
Chứng nhận: | ISO9001/ISO14001 |
Model Number: | D50-1.8 |
Minimum Order Quantity: | 1 set |
---|---|
Giá bán: | Negotiation |
Packaging Details: | Export standard wooden case |
Delivery Time: | 20-40 working days, depends on order amount and specification |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 SETS per month |
Công suất không khí: | 50m3 / phút | Áp suất chênh lệch xả: | 80KPA |
---|---|---|---|
Động cơ điện: | 90kw | Lỗ khoan: | DN200 (8) |
Loại làm mát: | air | Loại điều khiển: | Khớp nối |
Ứng dụng: | xử lý nước thải, lò luyện kim, nhà máy luyện than, tuyển nổi mỏ, khí hóa học, công nghiệp chân không | ||
Điểm nổi bật: | high pressure centrifugal blower,centrifugal air blower |

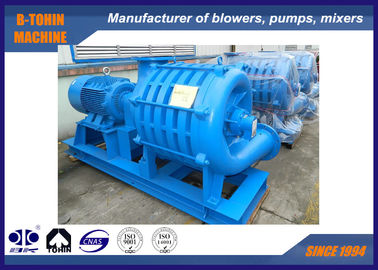

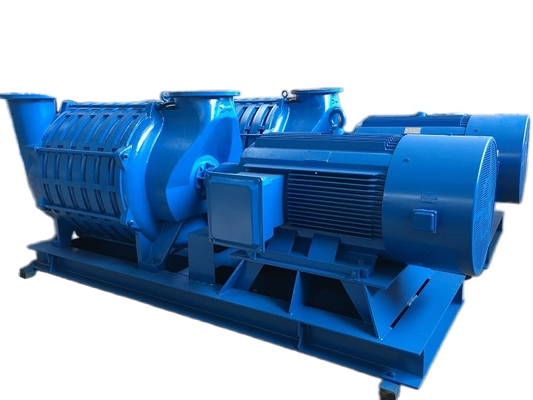

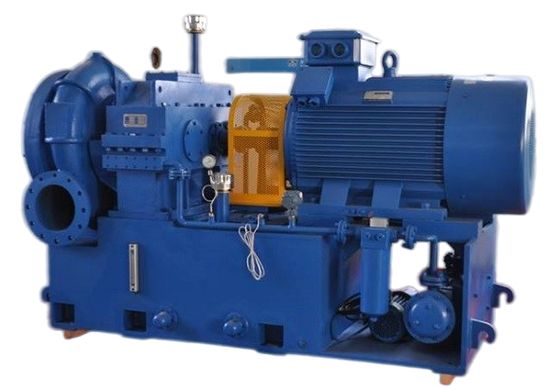

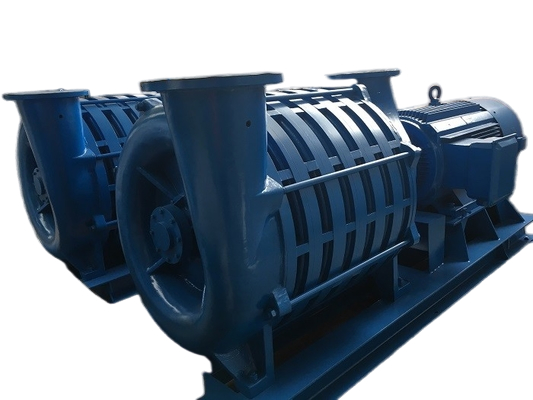

3000m3/h Multistage Centrifugal Blower, air generator for sewage aeration
About D series multi-stage centrifugal blower
D series Multi-stage Centrifugal Blower is designed by famous institute in China and engineers of B-Tohin. The blower has several impellers connected by connection rod. The inlet air is compressed stage by stage and finally discharge air capacity from outlet.
.
Specifications
Model No. |
D50-1.8 |
Discharge differential pressure |
80KPA |
Motor power |
90KW |
Air capacity |
50m3/min |
Motor type |
380/400/415/440V, 3PHASES, 50/60HZ |
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
Features
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. Blower main body
2. Inlet muffler (with air filter)
3. Public base for motor and blower(including coupling cover)
4. Inlet manual butterfly valve
5. Motor
6. Pressure gauge
7. Mounting bolts and connection accessories
8. Check valve
Dimensions of blower
Horizontal flow direction | ||
Vertical flow direction |
1. blower base 2. blower main body 3. inlet silencer 4. butterfly valve 5. coupling 6. electric motor
Model | Size(mm) | ||
A | B | C | |
D50-1.8 | 1246 | 1285 | 2630 |
