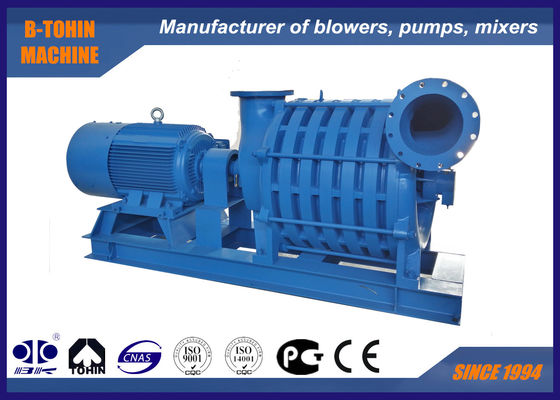

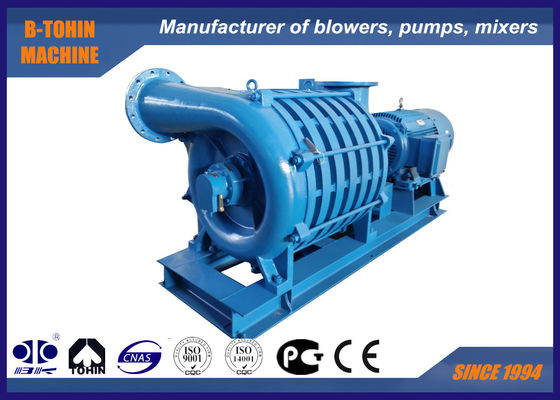

70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor

70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor

  • 70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor
  • 70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor
70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: BK
Chứng nhận: ISO9001/ISO14001
Model Number: D30-1.7
Thanh toán:
Minimum Order Quantity: 1 set
Giá bán: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 20-40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 10 SETS per month
Tiếp xúc
Chi tiết sản phẩm
Công suất không khí: 30m3 / phút Áp suất chênh lệch xả: 70KPA
Động cơ điện: 55kw Lỗ khoan: DN200 (8)
Loại làm mát: air Loại điều khiển: Khớp nối
Ứng dụng: xử lý nước thải, lò luyện kim, nhà máy luyện than, tuyển nổi mỏ, khí hóa học, công nghiệp chân không
Điểm nổi bật:

multi stage centrifugal blowers

,

high pressure centrifugal blower





70KPA Multistage Centrifugal Blower for Mining flotation, centrifugal compressor






About D series multi-stage centrifugal blower


B-TOHIN is a professional manufacturer of various kinds of blowers. The multi-stage centrifugal blower we produced contains blower main body and matched motor. Also control system is available and can be customized upon customers' requests..



Specifications



Model No.

D30-1.7

Discharge differential pressure

70KPA

Air capacity

30m3/min

Motor power

55KW

Shaft power

43KW

Motor type

380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option






Features



1. Compact structure, elegant appearance, high stability,  convenient installation and maintenance



2. Smooth operation:optimized high-efficiency impeller decreases the axial force to the minimum.  And after static and dynamic balance, the blower can run more smoothly



3. Low noise: no mechanical friction and reasonable blade curve ensures low noise



4. Oil-free Blower



5. Impeller is featured with special composite linear to reduce  internal leakage and improve volumetric efficiency.



6. Easy to be adjusted



7. Inlet rings are equipped for impeller of every stage, and labyrinth seals are set between stages and at the two ends of  housing for preventing gas leakage.



8. air cooling and water cooling designed for exhaust bearing pedestal, prolonged bearing service life.



9.  Bearing temperature alarm



10.  Blower and motor connected by coupling, other connection methods available according to different technique requirements.




Structure of blower main body



70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor 0










Assembling drawing of blower package



70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor 1



Standard supply of scope



1. Blower main body

2. Inlet muffler (with air filter)

3. Public base for motor and blower(including coupling cover)

4. Inlet manual butterfly valve

5. Motor

6. Pressure gauge

7. Mounting bolts and connection accessories

8. Check valve
