Nguồn gốc: | China |
Hàng hiệu: | BK |
Chứng nhận: | ISO9001/ISO14001 |
Số mô hình: | D40-1.65 |
Số lượng đặt hàng tối thiểu: | 1 set |
---|---|
Giá bán: | Negotiation |
chi tiết đóng gói: | Export standard wooden case |
Thời gian giao hàng: | 20-40 working days, depends on order amount and specification |
Điều khoản thanh toán: | L/C, T/T |
Khả năng cung cấp: | 10 SETS per month |
Công suất không khí: | 40m3 / phút | Áp suất chênh lệch xả: | 65KPA |
---|---|---|---|
Động cơ điện: | 75KW | Lỗ khoan: | DN200 (8) |
Loại làm mát: | air | Loại điều khiển: | Thắt lưng |
Ứng dụng: | xử lý nước thải, lò luyện kim, nhà máy luyện than, tuyển nổi mỏ, khí hóa học, công nghiệp chân không | ||
Điểm nổi bật: | multi stage centrifugal blowers,centrifugal air blower |

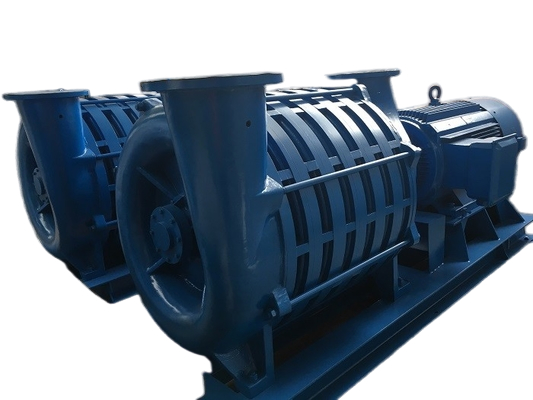

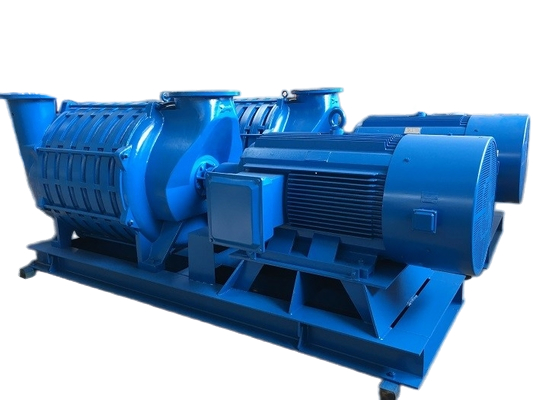

65KPA Multistage Centrifugal Blower for Mining flotation, centrifugal compressor
About D series multi-stage centrifugal blower
Specifications
Model No. |
D40-1.65 |
Discharge differential pressure |
65KPA |
Air capacity |
40m3/min |
Motor power |
75KW |
Shaft power |
58KW |
Motor type |
380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ |
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
Features
Adopt optimizing design to the impeller and the blower casings to minimize the flow loss.
Use sealing diversion technology to the inlet of the impeller to improve the inlet flow ability.
Apply flow analysis technique to optimize the blower performance and improve the stage efficiency to above 78%.
Apply 3D Flow Impellers to some models of C blowers.
Carry out strict dynamic balance to get low vibration, low noise, and high reliability.
Select advanced blower structure design to make an easy installation, operation and maintenance.
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. Blower main body
2. Inlet muffler (with air filter)
3. Public base for motor and blower(including coupling cover)
4. Inlet manual butterfly valve
5. Motor
6. Pressure gauge
7. Mounting bolts and connection accessories
8. Check valve
