Nhà sản xuất chuyên nghiệp của nhiều loại máy thổi

|
| Nguồn gốc: | TRUNG QUỐC |
| Hàng hiệu: | BK |
| Chứng nhận: | ISO9001 |
| Số mô hình: | MTB90 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | xuất khẩu hộp gỗ tiêu chuẩn |
| Thời gian giao hàng: | 30 ngày làm việc |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 500 bộ/tháng |
| Người mẫu: | MTB90 | Sức mạnh trục: | 87kw |
|---|---|---|---|
| Điện áp: | 380v | Thông số kỹ thuật cáp: | 3*50+25/3*70+35 |
| Tiếng ồn: | <80 | Đầu ra dia.: | DN250 |
| Phương pháp làm mát: | Làm mát không khí | Bố cục tủ: | Tất cả trong một |
| Cân nặng: | 1050kg | Áp lực: | 40-90kpa |
| Khối lượng của dòng chảy: | 56-112 m³/phút | Tối đa. TỐC ĐỘ: | 27000 vòng/phút |
Max.Speed 35000rmp DN250 90Kpa 56m³/min Magnetic Suspension Bearing Blower

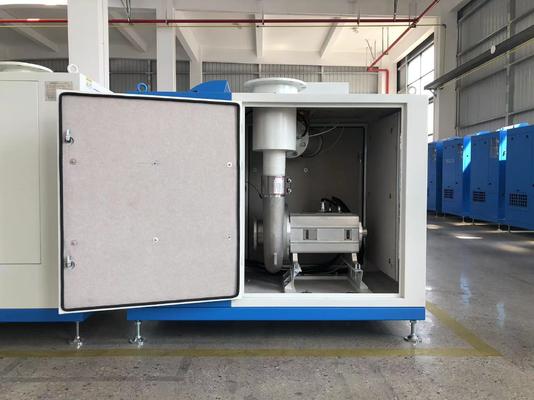

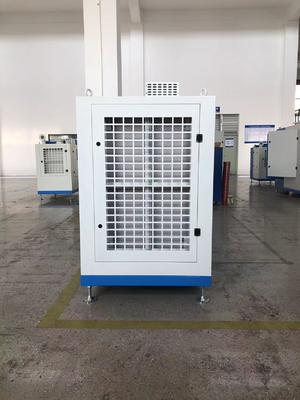

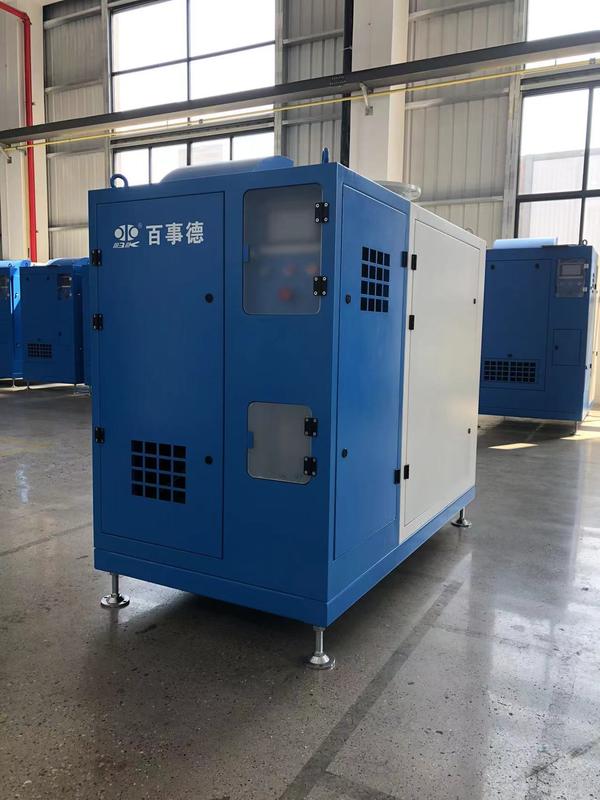

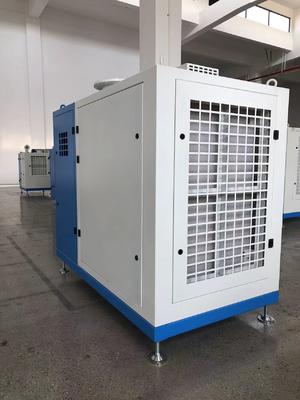

The MTB Magnetic Suspension Centrifugal Blower integrates advanced magnetic levitation (Magnetic Suspension) technology with centrifugal
blower mechanics to create a high-efficiency, low-maintenance airflow solution.
Machine Specification
| Model | MTB90 |
| Shaft Power(kw) | 87 |
| Max Speed(rpm) | 27000 |
| Voltage(V) | 380 |
| Cable Specification | 3*50+25/3*70+35 |
| Noise Level(db) | ＜80 |
| Outlet Dia(mm) | DN250 |
| Cooling Method | Air cooling |
| Layout | Integrated |
| Weight(kg) | 1050 |
| Set-up pressure(kpa) | Airflow(m³/min)1atm,20℃ |
| 40 | 112 |
| 50 | 85 |
| 60 | 78 |
| 70 | 65 |
| 80 | 51 |
| 90 | 56 |
| 100 | |
| 110 | |
| 120 |
Main Technology
1,1,High speed permanent magnet motor
The high-speed motor adopts a permanent magnet synchronous motor. For each model of motor, secondary software and hardware development is carried out for the drive frequency converter, while optimizing the matching of reactors or filters. The efficiency of both the motor and frequency converter is higher than 97%, ensuring stable operation of the motor at low temperatures and high efficiency.
1,2,Pneumatic system
Having over ten years of experience in the development and designing of impeller machinery. Each type
of impeller has undergone long-term bench tests to ensure its aerodynamic performance is efficient and
reliable.The impeller efficiency is over 87%. By adopting frequency conversion regulation, the guide
vane adjustment is eliminated, resulting a smaller starting current and a wider adjustable range
for the blower.
1,3,Cooling technology
The blower adopts coaxial air cooling technology, which does not require additional cooling system . The cooling system flow channel design is reasonable and the structure is reliable. This cooling design ensures that the blower maintains reliable performance in various environments and working conditions, making it more energy-efficient and reliable.
1,4,Magnetic suspension bearing
Magnetic levitation bearings are a new type of bearing that uses magnetic force to achieve support. They are non-contact, non lubricated and sealed, low vibration, long service life, and low maintenance costs. By collaborating with outstanding domestic and international experts in magnetic levitation bearing design, we have accumulated years of experience in manufacturing and using magnetic levitation bearings. Combined with years of experience in high-speed impeller machinery rotor dynamics, we can provide users with efficient and stable magnetic levitation bearings.
1,
5,5,No performance reduction
Based on magnetic levitation bearing technology, there is no mechanical friction between the rotating and stationary parts during the operation of the motor, ensuring that the performance of the air compressor does not deteriorate due to component wear throughout its entire life cycle.
2,6,Passive safety design
By adopting the patented "passive safety+closed cycle water cooling" technology, the protection level and cooling efficiency of the motor have been greatly improved, which can meet the stable operation of various harsh environmental conditions such as cement and chemical industry.
Applications
1,Industrial: Wastewater treatment, pneumatic conveying, combustion air supply.
2,HVAC: Energy-efficient ventilation in large buildings.
3,High-Tech: Clean rooms, data centers, medical facilities.
4,Renewable: Fuel cells, energy recovery systems.
FAQ
Q1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
Q2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
Q3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.
Q4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
Q6. What are your terms of payment?
TT 30% as the advance payment and TT 70% after inspection before shipping.
