Nhà sản xuất chuyên nghiệp của nhiều loại máy thổi

|
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | BK |
| Chứng nhận: | ISO9001/ISO14001 |
| Số mô hình: | GS500-(1.5-2.0) |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | Vỏ gỗ tiêu chuẩn xuất khẩu |
| Thời gian giao hàng: | 20-40 ngày làm việc, tùy thuộc vào số lượng đặt hàng và đặc điểm kỹ thuật |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 10 bộ mỗi tháng |
| Khả năng không khí: | 500m³/phút | Xả áp suất chênh lệch: | 50-100kPa |
|---|---|---|---|
| Công suất động cơ: | 560/630/710/800/900/1000KW | Hàm lượng bụi và: | <=10mg/m³ |
| Tem.: | 20°C | Động cơ đặc biệt: | Mực nước biển>=1000m |

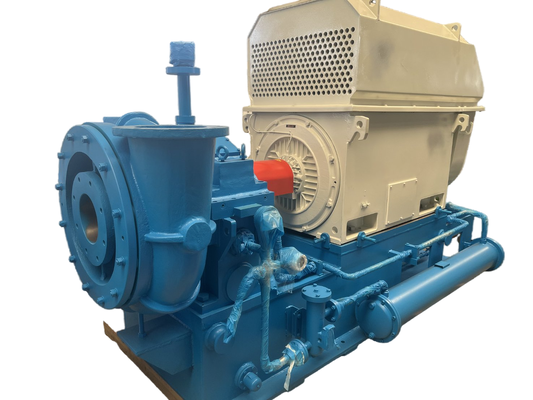

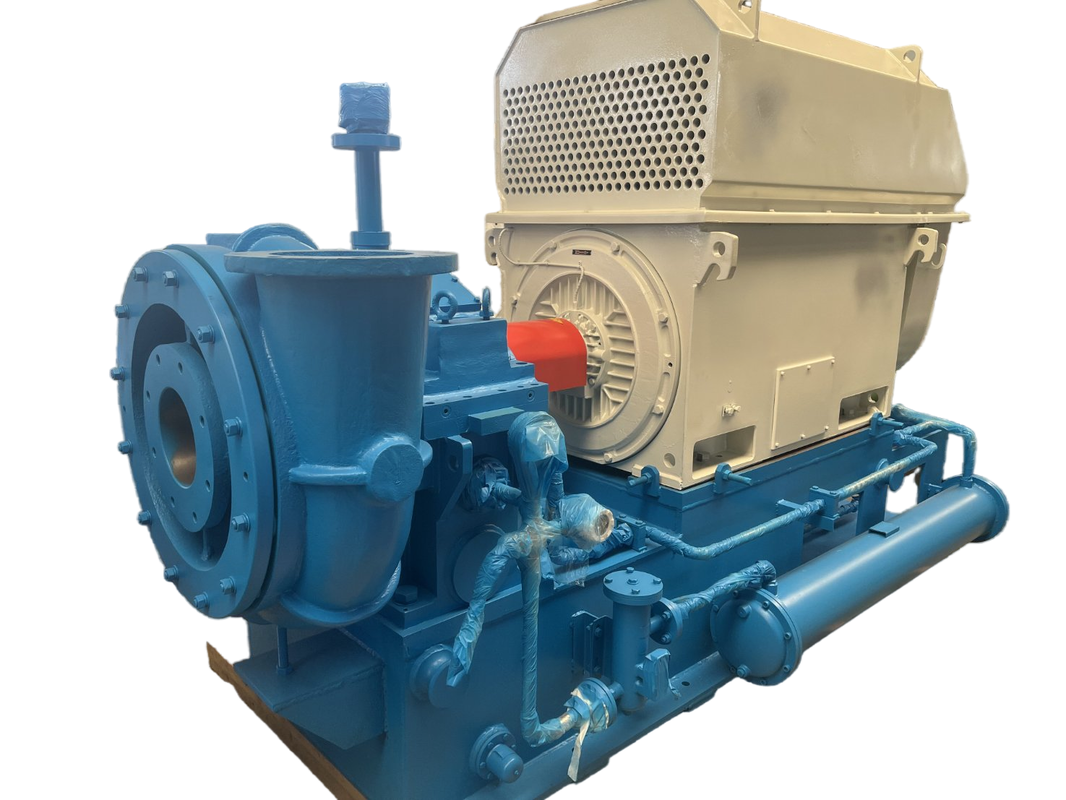

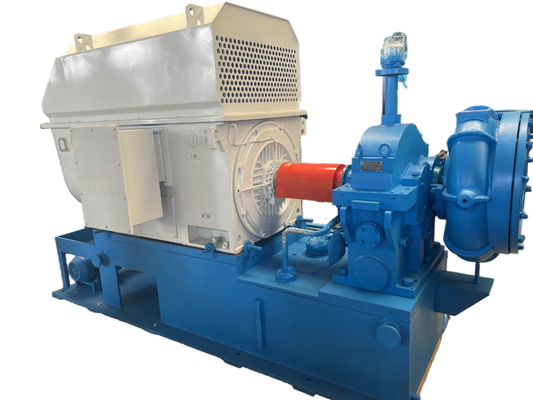

50-100 KPa Pressure,500m³/min Airflow,energy-saving waste water treatment aeration centrifugal blowerfan
About GS
GS series single-stage high-speed centrifugal blower is specially designed for waste water treatment aeration.Meanwhile,it is available for
medium,such as air,nitrogen,nitrogen dioxide and other non-corrosive gases.
Gs blower is characterized by wide applicability, significant energy saving,small area and easy installation,operation and maintenance.
Specifications
|
型号 Model |
压力 Pressure |
风量 Airflow |
功率 Power |
| Kpa | m³/min | KW | |
| GS500-1.5 | 50 | 500 | 500 |
| GS500-1.6 | 60 | 500 | 560 |
| GS500-1.7 | 70 | 500 | 710 |
| GS500-1.8 | 80 | 500 | 710 |
| GS500-1.9 | 90 | 450 | 800 |
| GS500-2.0 | 100 | 450 | 900 |
Blower structure
Gs series centrifugal blower features single-stage cantilever,axial inlet and radical discharge structure. Air comes into the suction pipe and the
inlet guide vane device from the inlet filter setting.Main driving motor is connected with the coupling and the step-up box.When start,
the step-up gear drive the ternary mixed semi-open impeller to make gas for power,and the gas discharge out through vane-less diffuser and
volute chamber.
GS Series Blower Performance Curve
GS Series centrifugal blower featurers single-stage cantilever,axial inlet and radical discharge structure. Air comes into the suction pipe and the
inlet guide vane device from the inlet setting. Main driving motor is connected with the coupling and the step-up box. When start, the step-up gear
drive the ternary mixed semi-open impeller to make gas for power, and the gas discharge out through vane-less diffuser and volute chamber.
Blower conrol sustem
High grade automation,and reliable
Using self-turing intelligent instrument or programmable logic control (PLC) and man-machine conversation interface for the whole runing process, which can realize adjusting airflow automatic/ manual.GS series blower control system includes: blower,step-up box,motor,lubricant station,inlet
filter,air relief adjustable valve,shaft vibration ,anti-surge system,etc.It takes didital display touch screen control panel,and can process the full control and regulation through the corresponding software.Meanwhile, it can record various failures and dagnose the failures intelligently as well as
suggesting the cause of failures.
The pivotal components for the automatic control system are imported ones for ensuring the accuracy, reliability and easy maintenance of the control system.
Remote monitor
Control system can transmit the measured data through internet or GPRS emitter. Customers can login in our website(Http://www.bk.com.cn) to monitor the running condition; meanwhile, our company will monitor it periodically and send the important monitor point or abnormal information to
customers via short message or mail. This remote monitor system is a further guarantee for the safe running of blower.
GS Series Blower Projects
