Nhà sản xuất chuyên nghiệp của nhiều loại máy thổi

|
| Place of Origin: | China |
| Hàng hiệu: | BK |
| Chứng nhận: | ISO9001 |
| Model Number: | BX50 |
| Minimum Order Quantity: | 1 |
|---|---|
| Giá bán: | Có thể đàm phán |
| Packaging Details: | Exported wooden case |
| Delivery Time: | 25 working days |
| Supply Ability: | 500 Sets/Month |
| Model: | BX50 | Port Dia.: | 50 (5") |
|---|---|---|---|
| Speed: | 1500-1950RMP | Airflow: | 1.09-2.32 m³/min |
| Shaft Power: | 1.15-3.35kw | Pressure: | 10-70 Kpa |
| Material: | Stainless Steel | Applications: | Heat treatment,pipe clearing,special gas |
| Làm nổi bật: | 10Kpa Roots Blower,Steel Roots Blower,1500rpm Roots Blower |
||

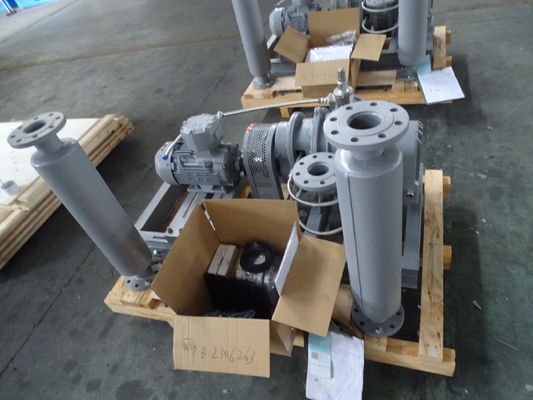

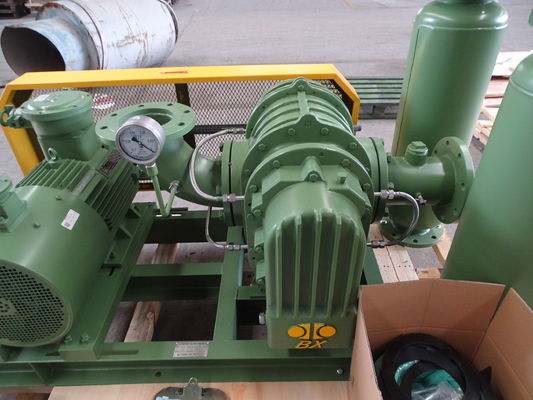

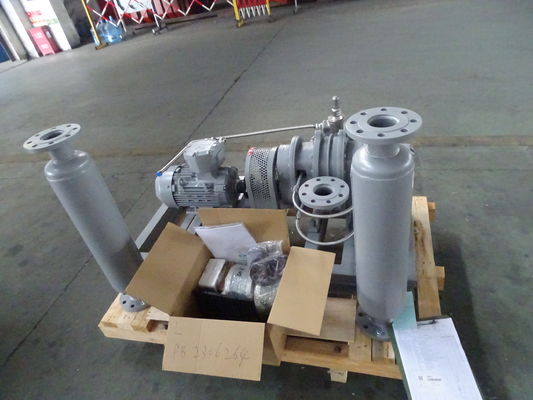

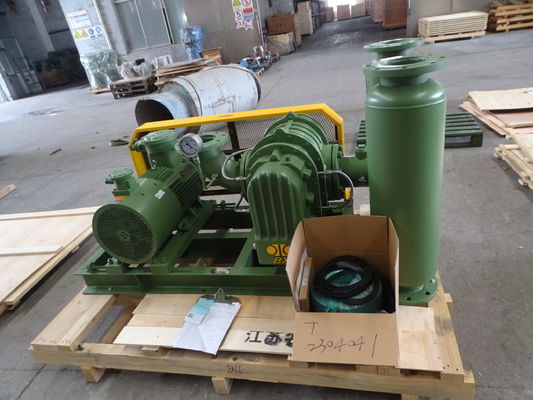

1500rpm 10Kpa 2.67m³/min Heat Treatment Roots Blower with Stainless Steel
Main Characteristics
1,The main components of BX Roots blower are precisely machined from stainless steel.
2,Key components are processed by machining center at one time,and the dimensional tolerance is accurate to ensure the processing accuracy and the operation stability of the blower under different working conditions.
3,The impeller is made of stainless steel.The special strength and rigidity make the impeller meet the conditions of high speed continuous load without fatigue and deformation.
4,The sealing structure adopts a double mechanical sealing structure and a water cooling sealing system to achieve the reliability of the sealing under different harsh conditions, thus ensuring the leak-free operation of BX Roots blower.
Product Parameters
| Performance Parameters Sheet | ||||||||||||||||
Type | (MM)Port Dia | Speed | Inlet airflow(m³／min) and shaft power(KW) at different conditions | |||||||||||||
| 0.1kgf/c㎡ | 0.2kgf/c㎡ | 0.3kgf/c㎡ | 0.4kgf/c㎡ | 0.5kgf/c㎡ | 0.6kgf/c㎡ | 0.7kgf/c㎡ | ||||||||||
| 1000mmH₂O | 2000mmH₂O | 3000mmH₂O | 4000mmH₂O | 5000mmH₂O | 6000mmH₂O | 7000mmH₂O | ||||||||||
| 0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | 0.05Mpa | 0.06Mpa | 0.07Mpa | ||||||||||
| rpm | m³/min | KW | m³/min | KW | m³/min | KW | m³/min | KW | m³/min | KW | m³/min | KW | m³/min | KW | ||
| BX50 | 50(2") | 1500 | 1.65 | 1.15 | 1.42 | 1.38 | 1.24 | 1.62 | 1.09 | 1.86 | ||||||
| 1650 | 1.88 | 1.26 | 1.64 | 1.52 | 1.46 | 1.79 | 1.31 | 2.05 | 1.17 | 2.31 | ||||||
| 1750 | 2.02 | 1.34 | 1.79 | 1.62 | 1.61 | 1.89 | 1.46 | 2.17 | 1.32 | 2.45 | 1.2 | 2.73 | 1.09 | 3.01 | ||
| 1850 | 2.17 | 1.41 | 1.94 | 1.71 | 1.76 | 2 | 1.6 | 2.3 | 1.47 | 2.59 | 1.35 | 2.88 | 1.24 | 3.18 | ||
| 1950 | 2.32 | 1.49 | 2.09 | 1.8 | 1.9 | 2.11 | 1.75 | 2.42 | 1.62 | 2.73 | 1.5 | 3.04 | 1.39 | 3.35 | ||
